SCATT USB

is used for fixed target training at distances from 5 to 12 meters and imitates shooting up to 1000 meters. using pneumatic, small and large caliber sharpshooter weapons, archery bows, crossbows and other types of weapons.

* Warranty terms

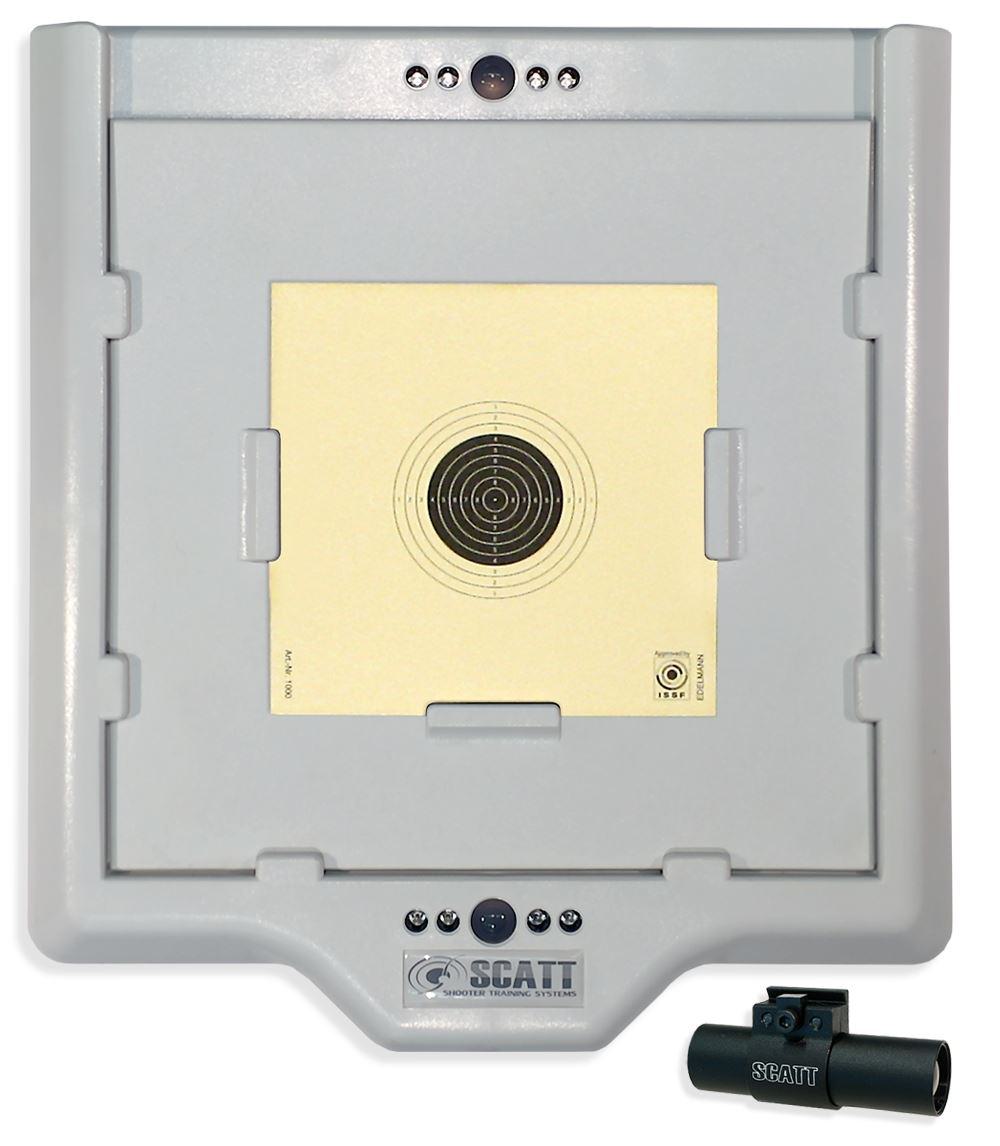

Electronic target (Model: ST4-12) installed instead of the usual target (hangs on the wall, Bullet catcher or mounted on a photo tripod), connected to the control unit, without requiring a separate power supply. In the special grooves on the body of an electronic target put paper target appropriate to choose an exercise and distance. Electronic targets can be used at ranges from 5 to 12 meters, which allows to train in different locations, using one electronic target.
To target the top and bottom are the LEDs red and green, designed for training with limited time on the shot (e.g. sport pistol). Target is made of durable ABS plastic and can withstand bullets from hitting air rifle.

Optical sensor (Model: OS-02) fixed on the firearm, this highly accurately measures the weapon"s alignment during aiming and actuation of the trigger mechanism. Metal fasteners of different dimensions, for use with various diameter barrels, allow the sensor to be fixed to the barrel or gas cylinder. Use collet framing to fix the sensor to the barrels of different pistol calibers. Optical sensor automatically measures the distance to the electronic target. The program allows you to automatically calibrate the sensor relative to the sighting of weapons, so there is no need for an amendment to the sights of weapons. Sensor automatically compensates for the "blockage of weapons! For the convenience of an optical sensor has a detachable cable and a convenient system mounting on the weapon, which allows you to vary the sensor position with respect to weapons. Optical sensor is connected directly to a USB port on your computer. Weight 30g.

Electronic target control (Model: WTC-01) connect to USB port of a computer by cable.

All-purpose mounting set Mounting kit for the optical sensor includes allen key, mounting prism and metal strip with screw that are used for fixing the sensor on the barrel of different diameters and cross sections. At the request of the customer set can be beefed up with extra fastenings see Fasteners (to secure optical sensor on the gun).

Target interface cable used to connect the electronic target to the control unit, has a length of 14m.

Optical sensor"s interface cable used to connect the optical sensor to USB port of your computer, has a length of 3m.

Target control unit"s interface cable used to connect the control unit to USB port of your computer, has a length of 1,5m.

Software SCATT Professional software has all the necessary features for efficient training and overall analysis of shooting results. Results are displayed in both digital and graphic forms and can be saved onto disk for further analysis (aim trajectory, shots and graphics, etc).

• Trigger sensor STS

• SCATT carrying bag

• SCATT & laptop carrying bag

• Fasteners (to secure optical sensor on the gun)

If you have difficulty with choosing the model of simulator SCATT, most suitable for you, use the table comparing the characteristics of simulators SCATT.
